Introduction

OPNsense is an open-source firewall, used in both consumer and commercial environments.

OPNsense utilizes Unbound, which has built-in DNS over TLS support, with the configuration being accessible in the GUI.

Before making changes to a production environment, we recommend taking a backup of the existing configuration.

Step 1

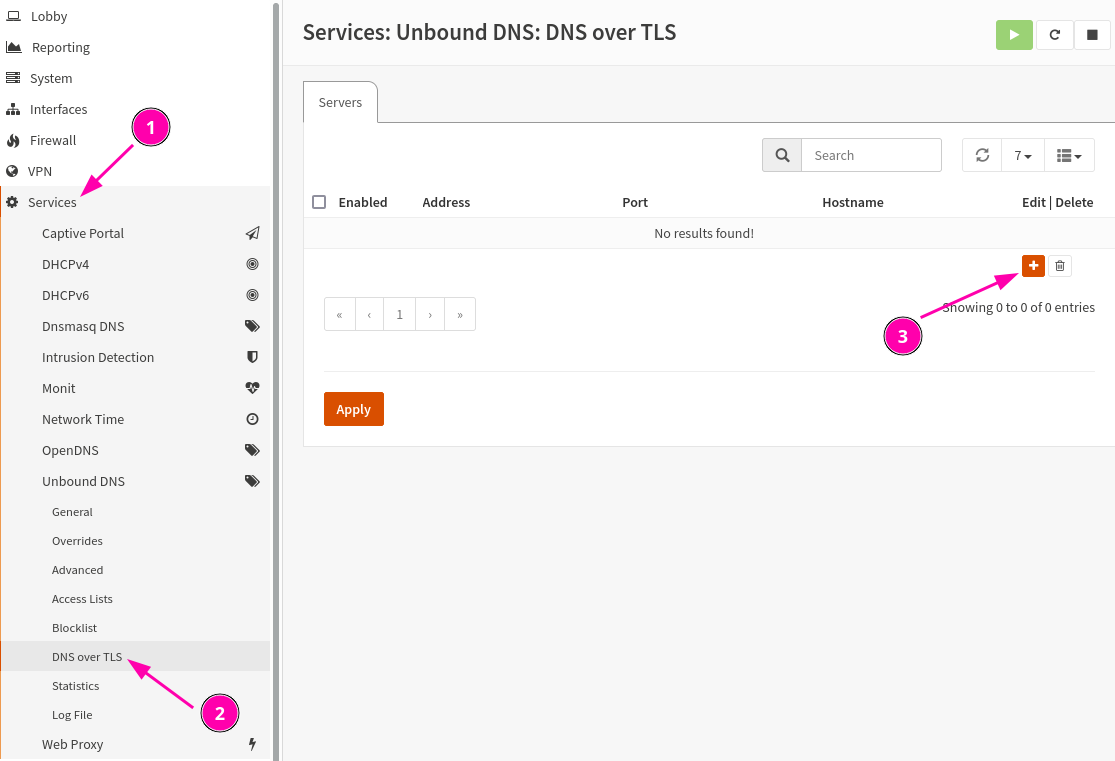

Navigate to Services -> DNS over TLS on the left-side menu Click the + button

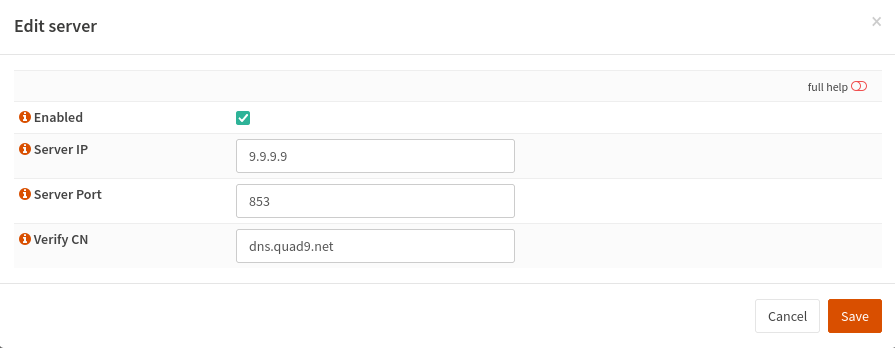

Add 4 entries: Server IP: 9.9.9.9 Server Port: 853 Verify CN: dns.quad9.net Server IP: 149.112.112.112 Server Port: 853 Verify CN: dns.quad9.net Server IP: 2620:fe::fe Server Port: 853 Verify CN: dns.quad9.net Server IP: 2620:fe::9 Server Port: 853 Verify CN: dns.quad9.net If your network does not have IPv6, which you can test here, then IPv6 addresses should not be added, as it may result in a percentage of your DNS requests failing.

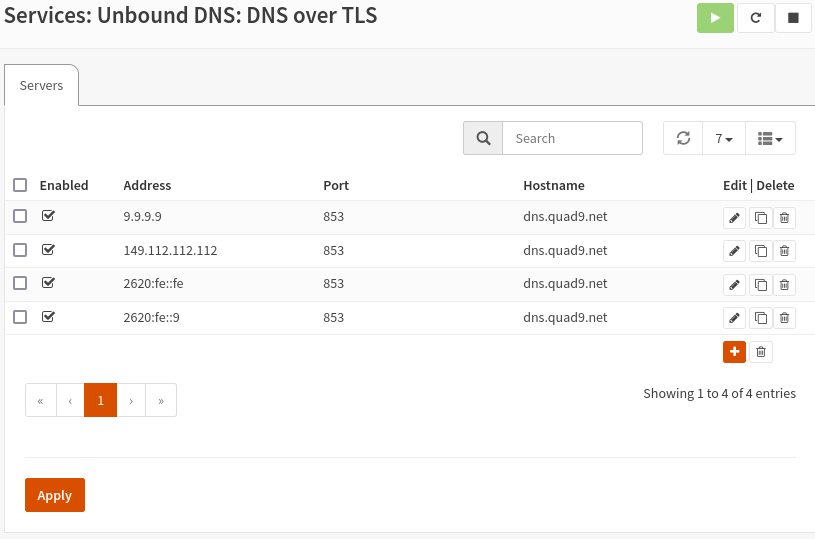

The configuration should look like the following Click on Apply to save the changes.

Step 2

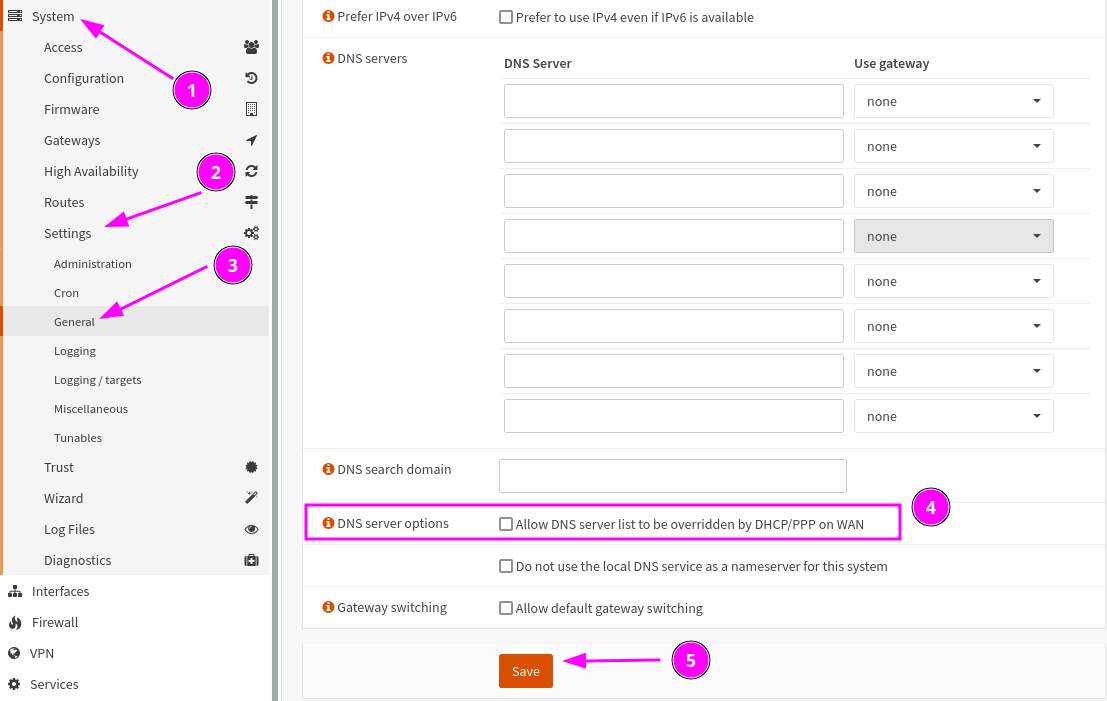

Navigate to System -> Settings -> General on the left-hand menu. Disable Allow DNS server list to be overriden by DHCP/PPP on WAN Click Save Click Apply at the top of the page

To can confirm that OPNsense is now sending your queries via DNS over TLS, you can run a packet capture in command line, such as:

# tcpdump -i em0 'port 853'

You may have to adjust the interface name from em0 to that of your device's WAN interface.

You can also run a test from a macOS, Linux, or Windows system on the network.
